1. Efficient Particle Capture: The arrangement of filter discs maximizes the surface area available for particle capture, ensuring high filtration efficiency.
This innovative pile cloth disc filter excels in capturing microparticles and microplastics from wastewater while achieving optimal phosphorus reduction.
We’re excited to present the advanced Pile Cloth Disc Filter system. It showcases the dedication to technological progress, offering outstanding filtration capabilities that lead the way toward a cleaner, sustainable future.

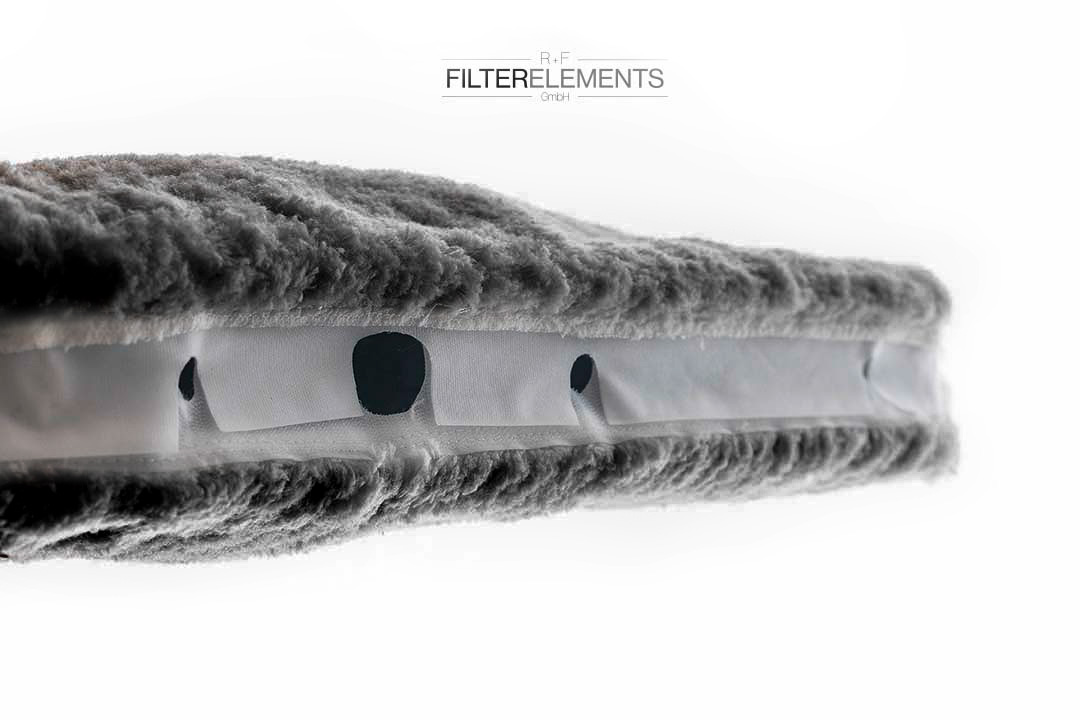

Microfiber Pile Filter Cloth
Pile Cloth Disc Filter

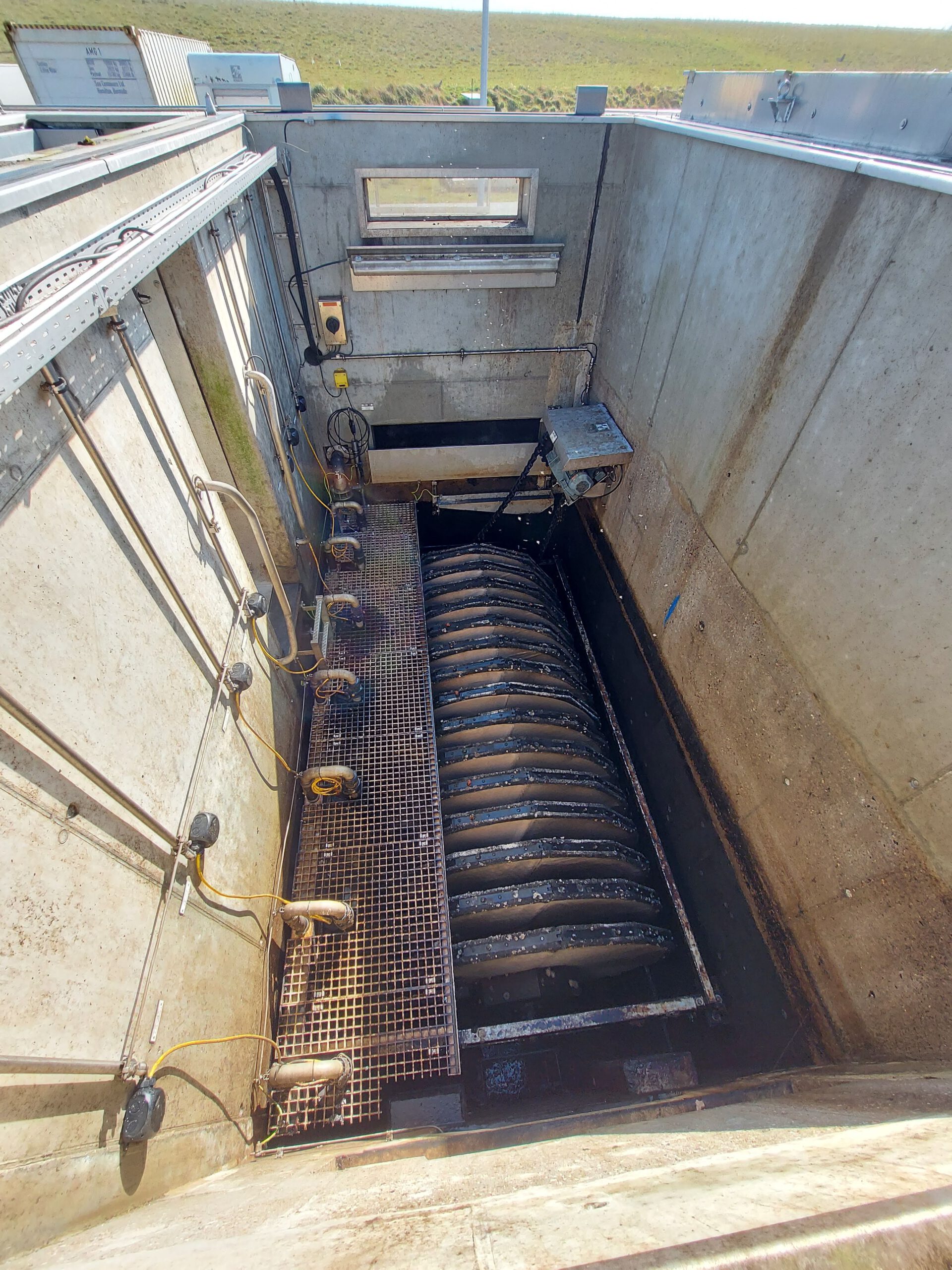

At the heart of a Pile Cloth Disc Filter is a state-of-the-art filtration technology that sets new standards in water treatment. The system is composed of multiple vertically stacked discs, each outfitted with our specialized pile cloth filter media. This unique design allows for maximum surface area and efficient particle capture.
How It Works: Filtration and Backwash Cycle
Filtration Phase: Contaminated water enters the filtration chamber, passing through the gaps between the pile cloth discs. As water traverses the filter media, it efficiently captures suspended solids, microplastics, and other particles, ensuring only purified water proceeds through.
Accumulation of Solids: Over time, particles accumulate on the surface of the pile cloth discs, creating a filter cake. This accumulation is a natural part of the filtration process and contributes to effective particle removal.
Automated Cleaning Cycle: To ensure consistent performance, the Pile Cloth Disc Filter features an automated backwash mechanism. When the pile cloth becomes clogged, the system triggers a cleaning cycle. The pile cloth discs rotate, positioning the clogged area directly beneath a powerful suction device located at the top of each disc.
Efficient Particle Removal: As the disc rotates, the suction device springs into action, effectively drawing and removing the accumulated particles from the pile cloth’s surface. This innovative method ensures thorough cleaning without interrupting the filtration process.
Enhanced Filter Lifespan: By employing this precise backwash process, the Pile Cloth Disc Filter maintains its peak efficiency over an extended period. Regular, automated cleaning prevents excessive buildup and ensures consistent filtration performance.
Key Features of Pile Cloth Disc Filters
2. Innovative Backwash Mechanism: Our proprietary backwash system ensures thorough cleaning of the pile cloth discs, prolonging the lifespan of the filter media.
3. Adaptability: Pile Cloth Disc Filters can be tailored to accommodate various flow rates and types of contaminants, making them versatile for a range of applications.
4. Easy Maintenance: Designed for user-friendliness, our filters are easy to clean, replace, and maintain, minimizing downtime.
Applications of Pile Cloth Disc Filters
1. Municipal Wastewater Treatment: Achieve stringent effluent standards and reduce suspended solids in wastewater treatment plants.
2. Industrial Filtration: Address the diverse filtration needs of industrial processes, ensuring product quality and process efficiency.
3. Drinking Water Purification: Safeguard public health by using our filters to remove impurities from drinking water.
4. Microplastic Removal: Combat microplastic contamination in water bodies and contribute to environmental preservation.
Filter Area and Hydraulic Load Considerations:
1. Disc Filter: Each disc typically offers a filter area of around 5 square meters. The total filter area is determined by the number of discs installed. A disc filter system can range from 4 discs to 32 discs, providing a total filter area of up to 120 square meters.
2. This configuration allows for effective handling of solid loads within the specified range while accommodating hydraulic loads in the range of 5 – 15 m/h.
3. Disc filters with a higher number of discs can handle higher flow rates while maintaining the desired hydraulic load.
Explore in-depth technical specifications and details about a Pile Cloth Disc Filter — download our comprehensive technical information to get an inside look at the innovative technology and filtration solutions we offer.
Anna Rippel
Have questions or need further information?
Get in touch with our team to explore how our innovative pile filter cloth solutions can meet your specific requirements.
Arrange a meeting with our developers and experts for a detailed discussion on tailored filtration solutions that match your needs.
Elevate Your Filtration Processes with Pile Cloth Disc Filters
The Pile Cloth Disc Filter by R+F FilterElements GmbH combines innovation, efficiency, and reliability to deliver exceptional water treatment outcomes. Whether for municipal or industrial applications, the filters are engineered to exceed your expectations. Experience the future of water filtration today. Contact us to learn more about how a Pile Cloth Disc Filters can elevate your water treatment processes and contribute to a cleaner, more sustainable world.
